Splats

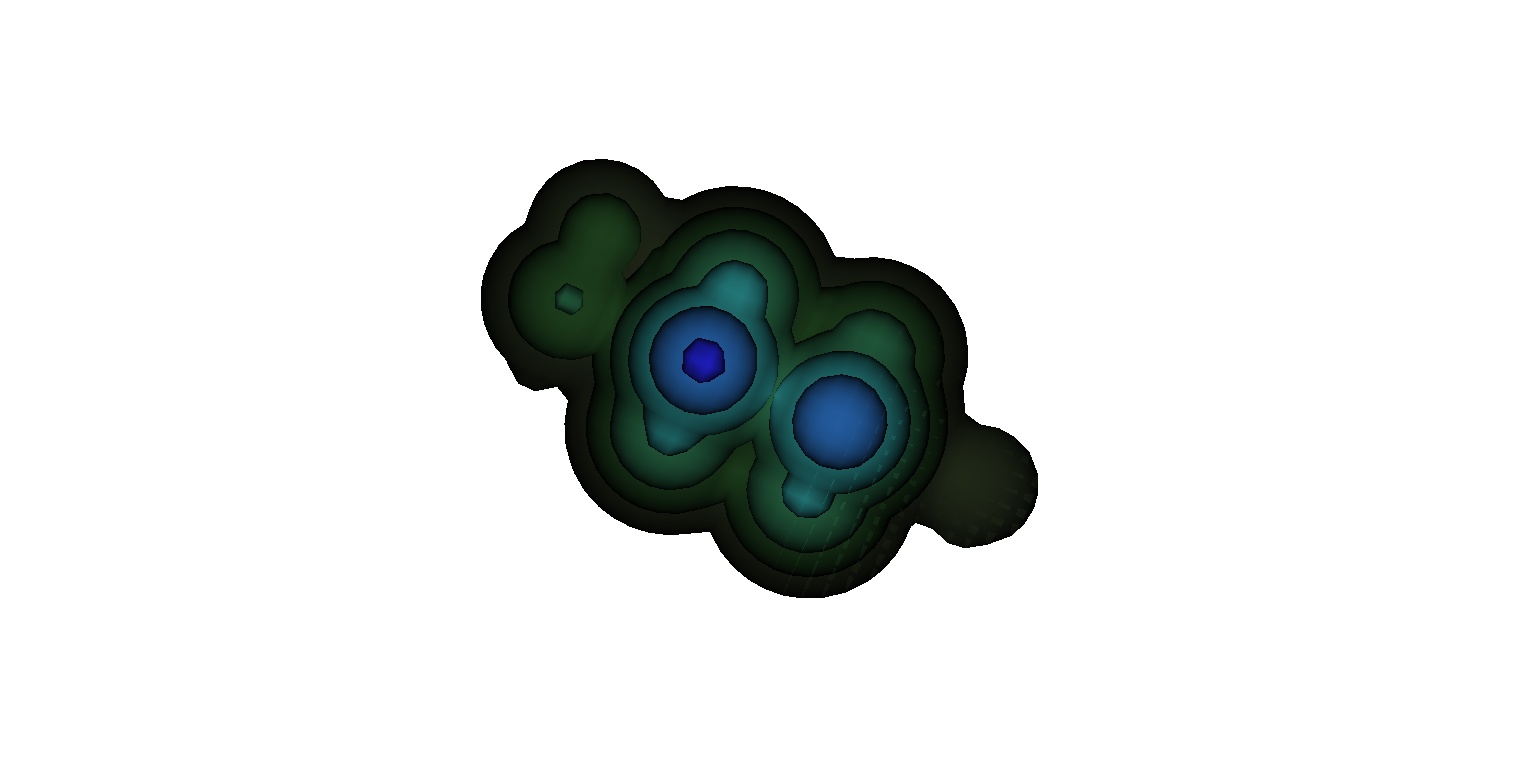

Hi res splat with color transfer and 40% opacity. You can see the intensity of the feild at the blue center. Notice the residual field. This image was created by extractin 100 surfaces of the data set.

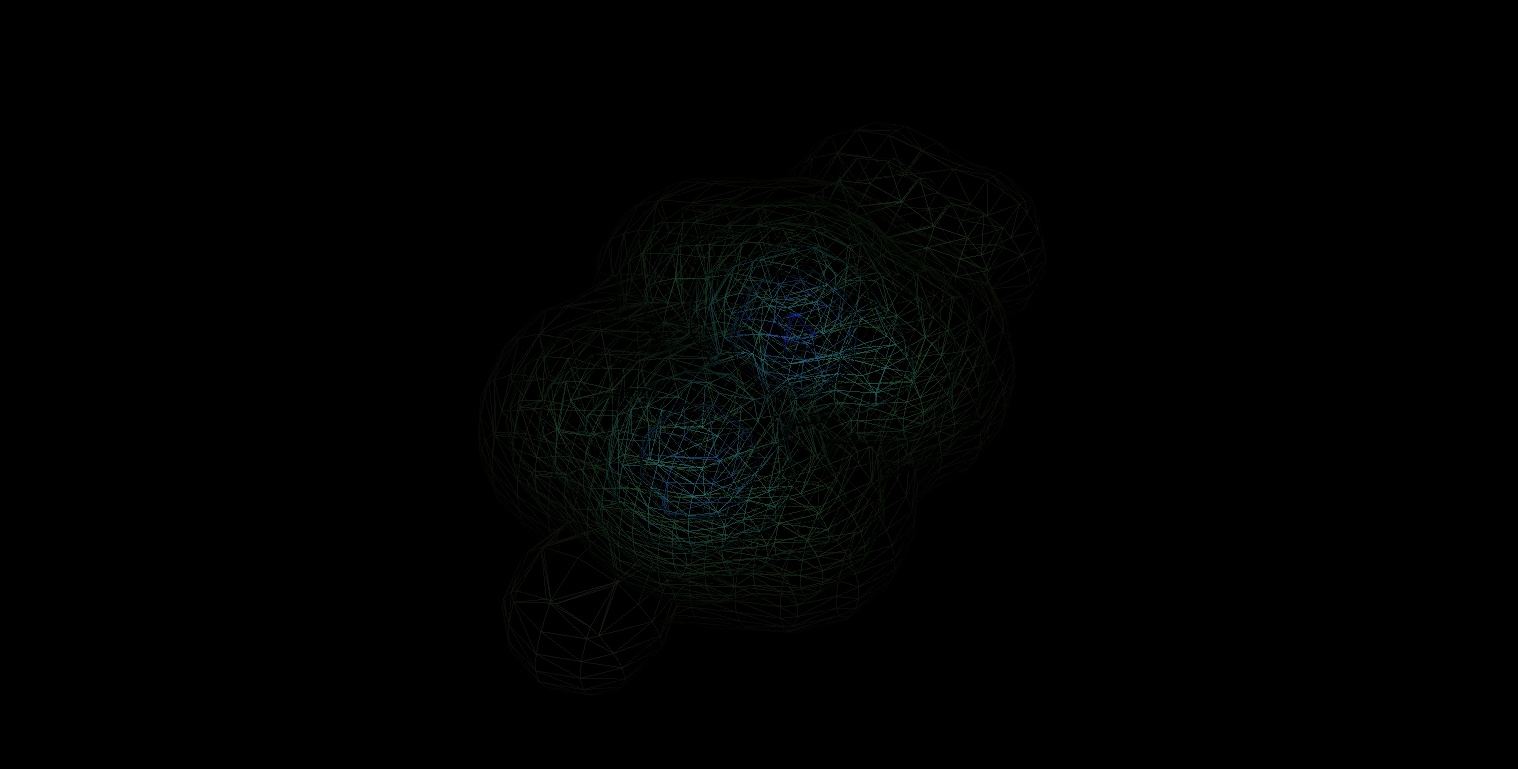

Hi res splat of e/m field. This wireframe version provides a nice view of the data.

Lowres, 10 contour splat from within the application. This highlights the extents best.

An early splat

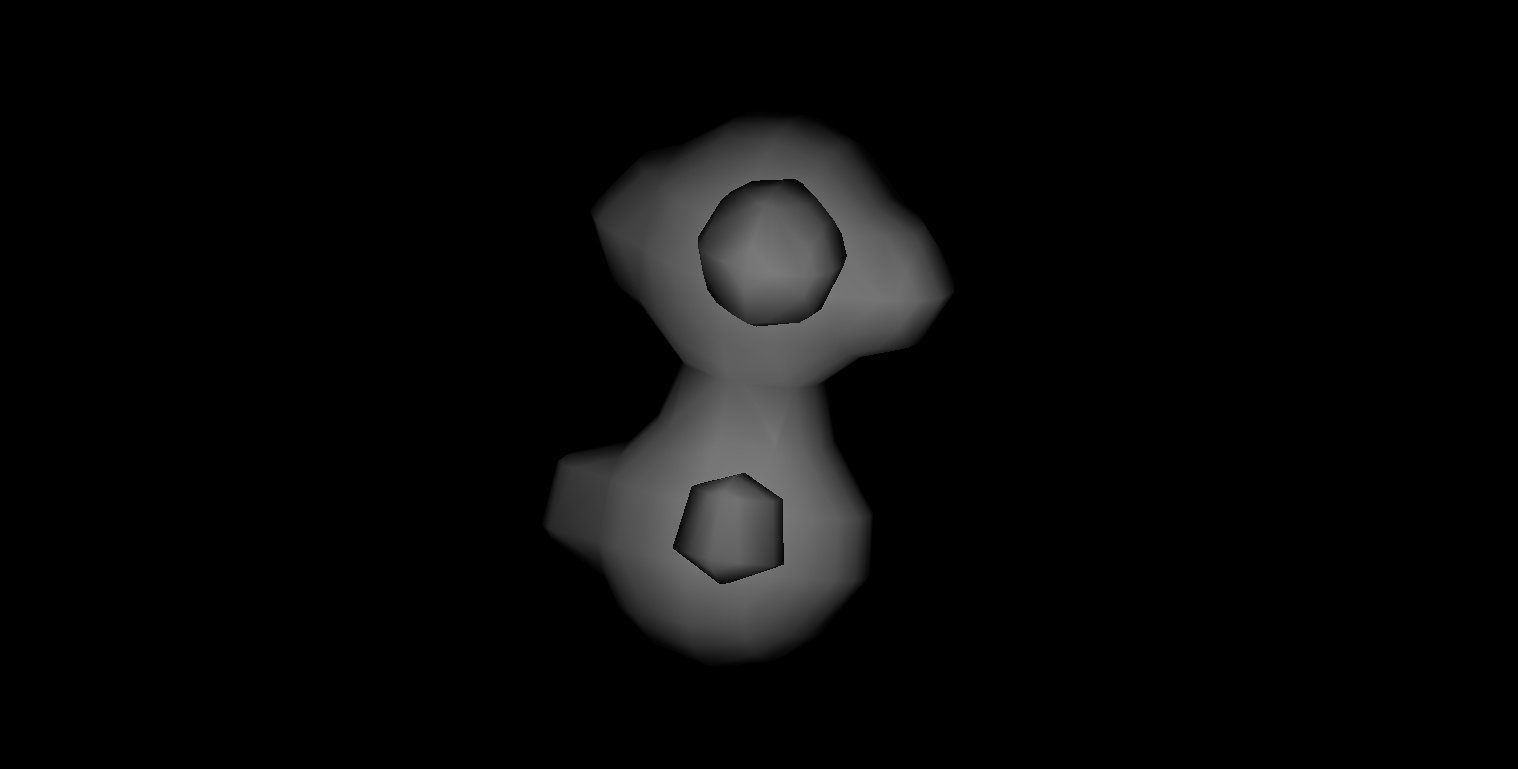

Splat of E/M field shape (2 surfaces)
